Through-Truss Bridge

Home >> Bridge Types Explained >> Through Truss Bridge

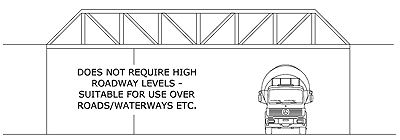

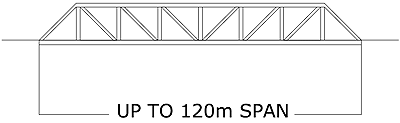

through truss bridge span diagram through truss height bridge span diagram through truss bridge outrigger diagram through truss bridge width diagram
  • Long span (50m - 150m)
  • Very strong, but also flexible
  • Economical as allow a slender and lighter structure which is still able to span large distances
  • Light weight is an advantage in earthquake-prone areas
  • Modern and simple design makes attractive and distinct landmarks
  • Easy to build in segments where in-situ construction or cantilever launch on rollers is not possible. This requires substantial piers and large counterweights
  • Less suitable for very windy places due to its lightness

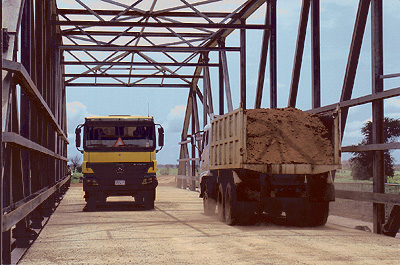

vehicles crossing bridge photo

Read information on construction of an Under Truss Bridge or see an example of our bridge construction in Sudan.
