Steel Bowstring Girder Bridge

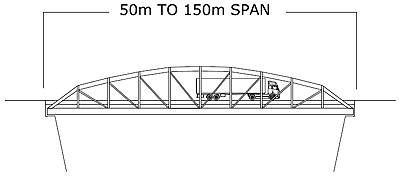

bowstring bridge span diagram bowstring bridge width diagram
  • Much like a through-truss bridge, except that the truss can be a higher, deeper segmental curve
  • Suitable for 50m - 150m spans
  • Attractive
  • Can be constructed on less robust foundations e.g. atop elevated piers/areas of uneven soil
  • Can be pre-fabricated offsite and hauled or lifted into place

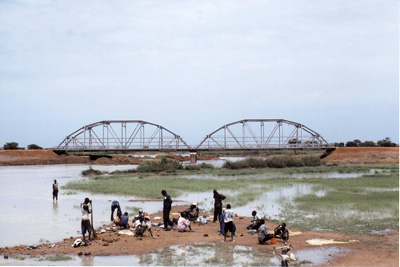

photo of steel bowstring girder bridge

View an example of our work In Nepal and Sudan.
