Bridge Construction Techniques - Over Truss Bridge

over truss bridge construction

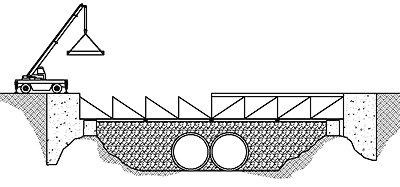

The easiest construction technique is in situ during the dry season, over causeway and culverts.

over truss bridge construction

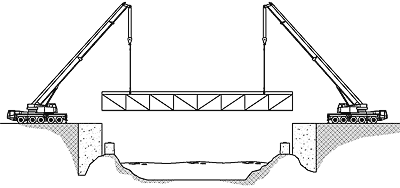

Or 2 -3 beams can often be lifted in, singly or joined in pairs, by cranes on each bank.

over truss bridge construction

Roller launch method. The bridge is constructed in situ and then jacked across the span using rollers and cantilever technique.

over truss bridge construction

A temporary nose section is used this is removed once the bridge is in position.

over truss bridge construction

The bridge is then simply lowered into place.
