Steel Pedestrian Foot Bridge

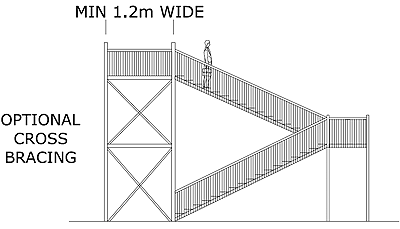

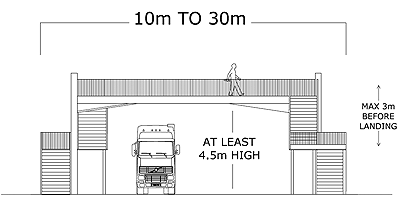

pedestrian span bridge diagram pedestrian bridge side view diagram pedestrian bridge steps diagram pedestrian bridge slope diagram
  • Designed for pedestrians and cyclists rather than vehicular traffic
  • Useful for crossing water/railways where there are no road bridges
  • Allow safe crossing of busy roads
  • Can also be used for walkways between buildings or in car parks
  • Must be at least 1.2m wide (unless designed for maintenance work only), but can be as wide as needed
  • Can be the simplest beam type with hand rails, or a through-truss with hand rails fixed to the two trusses
  • Through-trusses useful if the bridge is to have overhead cover and sides with cladding or mesh (essential for road or rail crossings)
  • Usually require stairways and ramps

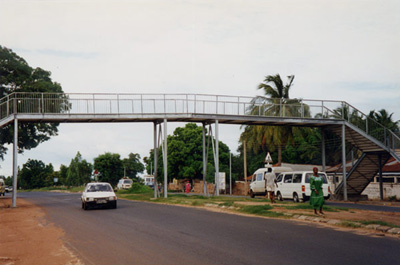

photo of steel pedestrian bridge
