Bridge Construction Techniques - Stayed Bridge

stayed bridge construction

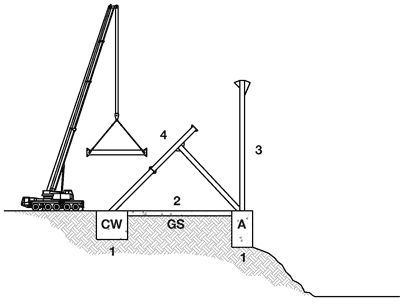

1. Build abutments, counter weight and ground struts.
2. Erect deck beam, transoms, rail.

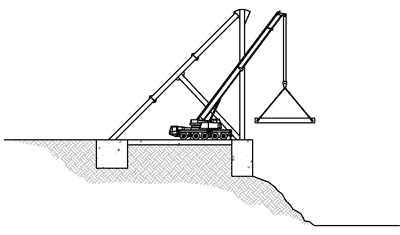

3. Erect tower.
4. Erect home stays.

stayed bridge construction

5. Erect rail system.

stayed bridge construction

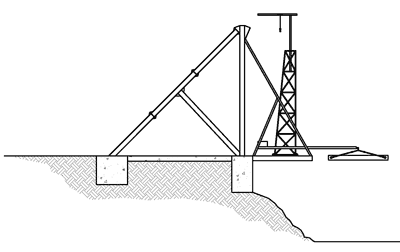

6. Erect gantry crane.
7. Erect new deck beams using gantry, with transoms.

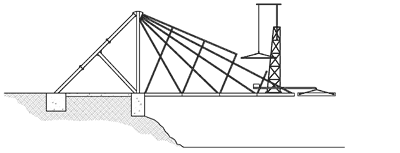

8. Erect bridge stays.

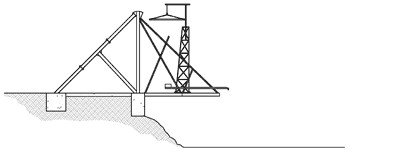

9. Extend gantry rails.

stayed bridge construction

10. Extend deck beams and transoms.
11. Erect further bridge stays

stayed bridge construction

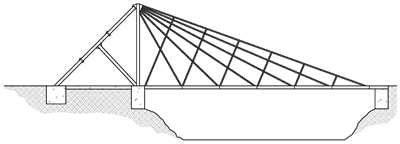

12. Continue process

stayed bridge construction

13. Erect simple supported link span to far bank or to far bridge.
